S-COM2 AV/Mobile Interfacing

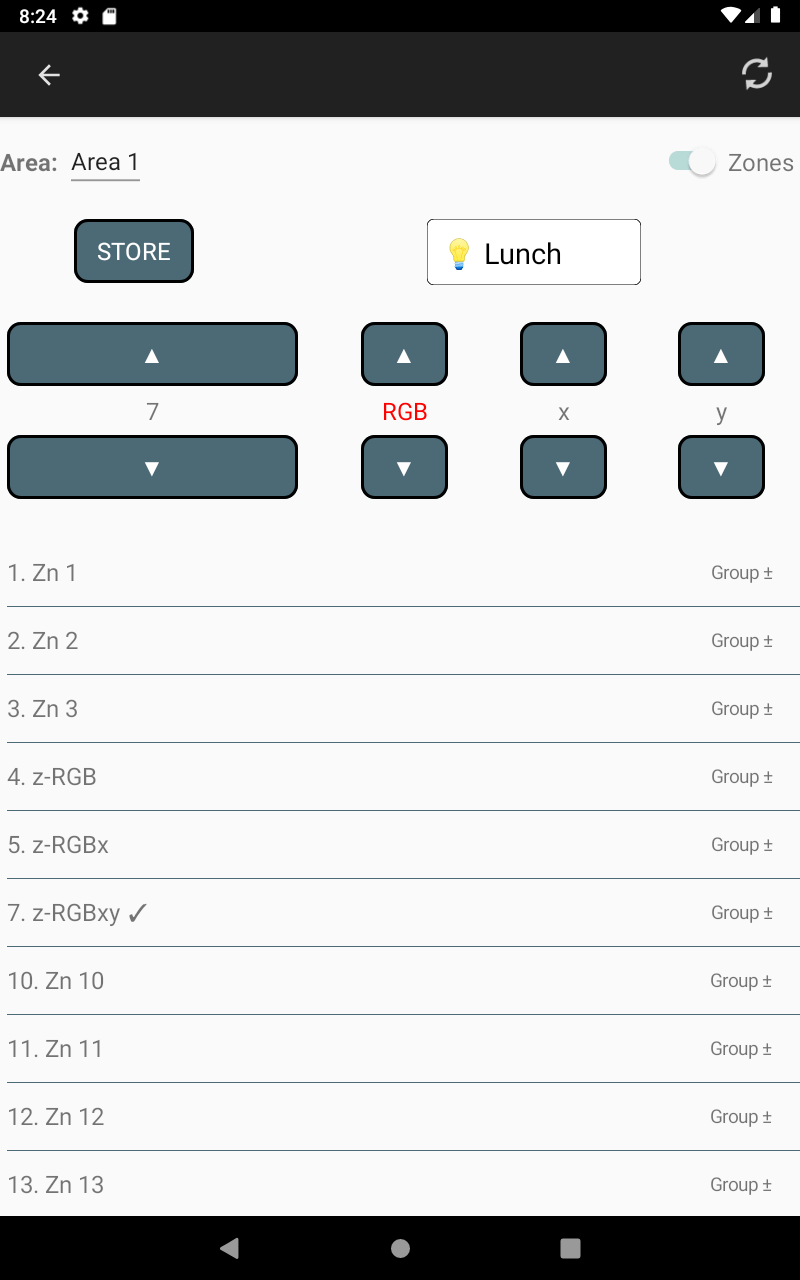

The S-COM2 provides an interface into the Solitaire/Impress DMX systems through serial (RS232 or RS422) ports and Ethernet (Telnet). The S-COM2 is connected to the Impress link where Audio/visual equipment, a PC, or any other device may then control and monitor the Solitaire/DTM system using simple ASCII string commands. String commands are provided for preset recall, mastering, zone control, wall open/close, etc. Up to 16 S-COMs may be used on the same LAN, each one uniquely identified. Connect the S-COM2 to a wireless router to form a Wi-Fi connection for the Soli mobile app that can be downloaded for iOS or Android.

S-MIO and SDE-CCI-RC

The S-MIO provides an interface into the Solitaire/Impress DMX systems for occupancy, daylight, or contact closure inputs. It also includes dry contact relay outputs configurable for NC or NO operation. There are up to eight inputs and eight outputs. Standard configuration can be done using on-board dip switches or thru a Master (DTM) for remote programming. Note additional configuration is required at the master to enable actions for occupancy and daylight as well as output control.

The SDE-CCI-RC interface provides room combine control using contact closure or solid state signal inputs for Solitaire or DMX Impress architectural control systems. It is also compatible with E-Flex control systems in Impress Link mode with an SDE Flex remote master.
Up to eight partitions can be connected to the SDE-CCI-RC inputs. A rotary switch selects between five different room layouts for typical control strategies, while dip switches configure the inputs for active high or active low partition sensors. Status LEDs indicate room combine status; when lit the rooms are combined.

  • Features
  • Resources
  • Related Products
  • S-MIO
  • Eight Inputs and Outputs
  • Daylight Sensor Input (Sinking only)
  • Occupancy Sensors
  • Contact Closure
  • Dry Contact Outputs
  • Status LEDs
  • Preset Recall
  • Shade Control Mode
  • Master Remote Programming
  • SDE-CCI-RC
  • Up to eight partitions
  • Built-in Wall configurations
  • Contact Closure or Solid State Input
  • Active Hi or Low
  • Wall Status LEDs
  • Compatble with E-Flex Impress Link Mode
  • S-COM2 Datasheet
  • S-COM2 Manual
  • S-MIO Datasheet
  • S-MIO Manual
  • S-MIO Manual V3
  • SDE-CCI-RC Datasheet
  • S-COM Manual
  • E-Flex Relay Panels
  • SB2400R Relay Panels
